Estadio
Biographies
Miguel Milá
Miguel Milá, an interior designer, inventor and bricoleur, and a pioneer in his field in Spain, began working in the 1950s. With objects, resources and raw materials hard to come by at that time, Milá started designing his own furniture and lamps and soon set up his own company, Tramo (from the Spanish Tra-bajos Mo-lestos, ‘Annoying Jobs’). Many of his pieces have become true contemporary classics. In 2016, the Spanish Ministry of Education and Culture in Spain awarded him the Gold Medal for Merit in Fine Arts. He has won numerous ADI awards (Barcelona), the first Spanish National Design Award (tied with André Ricard), and the ADI Compasso d’Oro for Lifetime Achievements. He was posthumously awarded the Gold Medal of the City of Barcelona in recognition of his career and his unparalleled contribution to the world of design.
Miguel Milá

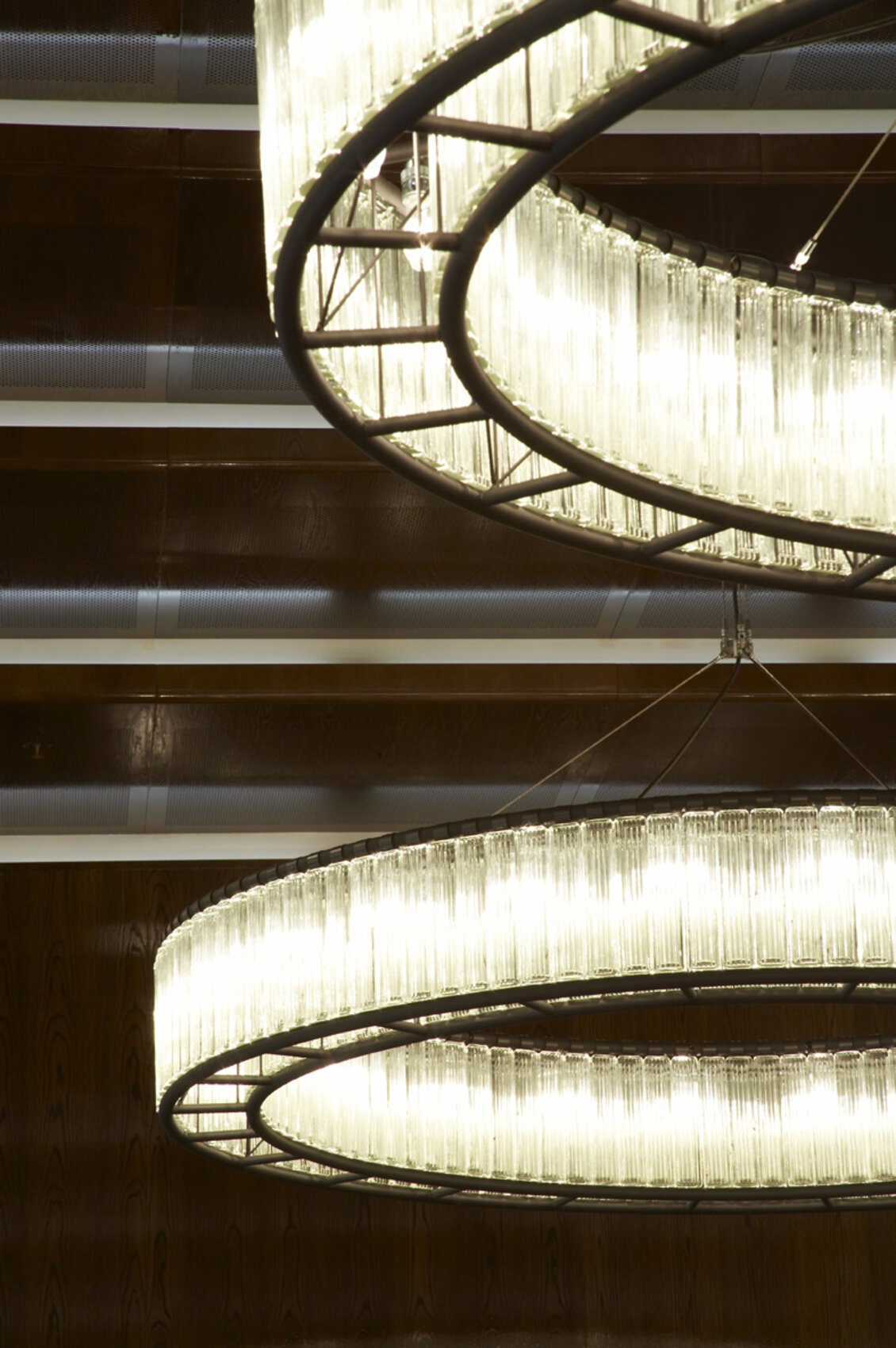

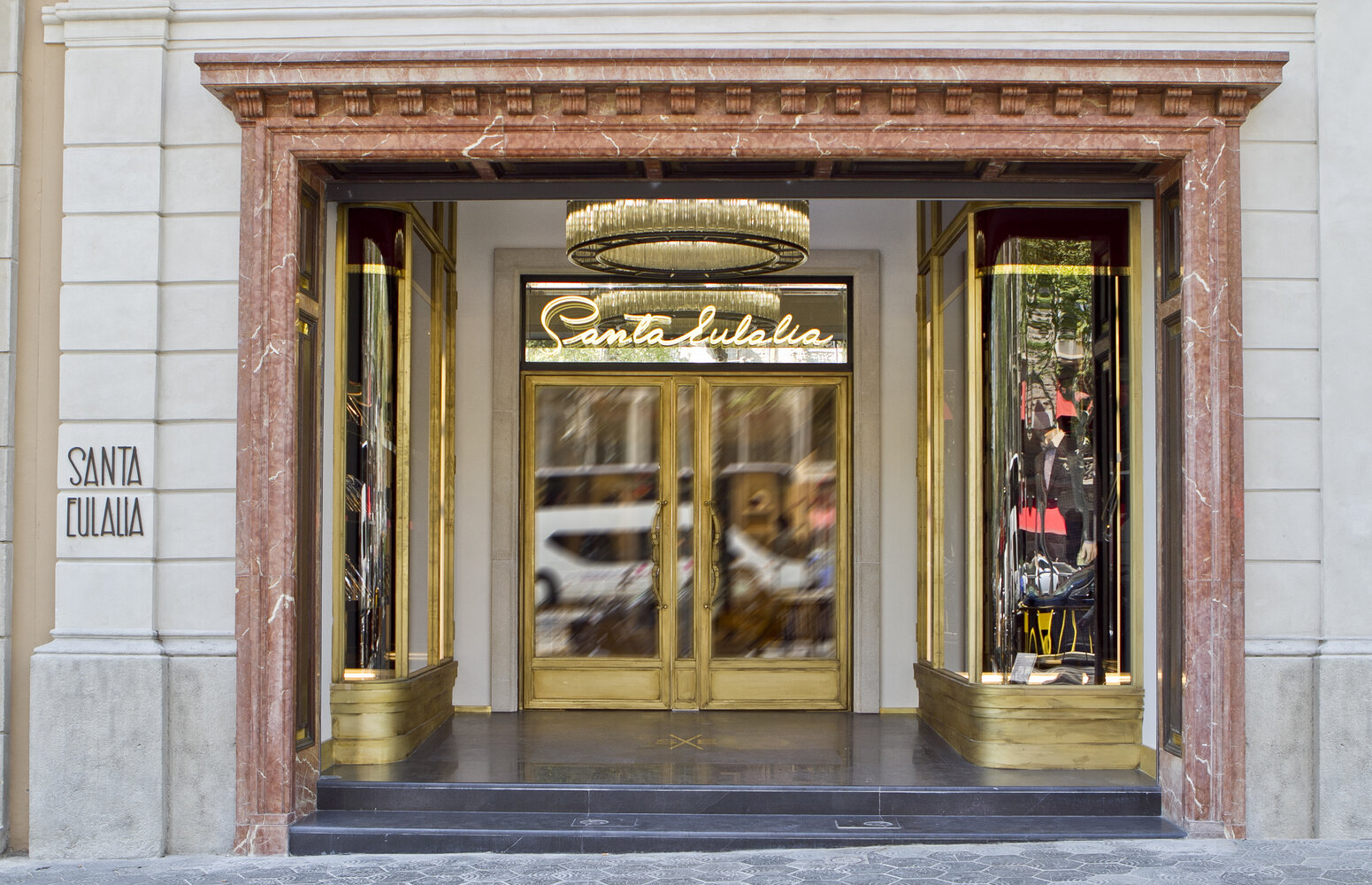

| 1992Originally designed for the 1992 Olympic Games in Barcelona, this elegant crown of light ennobles a public space. Conceptually, it is reminiscent of the huge cast iron chandeliers with a sequence of candles often seen in medieval castles and cathedrals. The frame is a tubular structure the visible sides of which are made of sections of glass blocks.
Dimension plane
Overview
Texturized black metal structure with stainless steel structure hanging system of 1 or 3 supports and satin nickel ceiling plate.
Glass block lampshade.
Optional diffuser made of translucent methacrylate.
Ø 105 cm / 41.3"
This fixture must be mounted or supported independently of a Junction Box (American version).
Light sources
Recommended light sources (not included): 12 x LED bulbLED bulb: 11 W
/ Input: 100, 120, 230 Vac.
C.E.E. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). According to destination.
Lamp holder: E26 (Max. height 155 mm / 6.1″)
Dimension plane
Overview
Texturized black metal structure with stainless steel structure hanging system of 1 or 3 supports and satin nickel ceiling plate.
Glass block lampshade.
Optional diffuser made of translucent methacrylate.
Ø 105 cm / 41.3"
Junction Box adaptor included Ø 11,7 cm / 4.6". This fixture must be mounted or supported independently of a Junction Box (American version).
Light sources
Recommended light sources (not included): 12 x LED bulbLED bulb: 11 W
/ Input: 100, 120, 230 Vac.
C.E.E. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). According to destination.
Lamp holder: E26 (Max. height 155 mm / 6.1″)
Dimension plane
Overview
Texturized black metal structure with stainless steel structure hanging system of 1 or 3 supports and satin nickel ceiling plate.
Glass block lampshade.
Optional diffuser made of translucent methacrylate.
Ø 150 cm / 59"
This fixture must be mounted or supported independently of a Junction Box (American version).
Light sources
Recommended light sources (not included): 18 x LED bulbLED bulb: 11 W
/ Input: 100, 120, 230 Vac.
C.E.E. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). According to destination.
Lamp holder: E26 (Max. height 155 mm / 6.1″)
Dimension plane
Overview
Texturized black metal structure with stainless steel structure hanging system of 1 or 3 supports and satin nickel ceiling plate.
Glass block lampshade.
Optional diffuser made of translucent methacrylate.
Ø 150 cm / 59"
Junction Box adaptor included Ø 11,7 cm / 4.6". This fixture must be mounted or supported independently of a Junction Box (American version).
Light sources
Recommended light sources (not included): 18 x LED bulbLED bulb: 11 W
/ Input: 100, 120, 230 Vac.
C.E.E. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). According to destination.
Lamp holder: E26 (Max. height 155 mm / 6.1″)
Dimension plane
Overview
Texturized black metal structure with stainless steel structure hanging system of 1 or 3 supports and satin nickel ceiling plate.
Glass block lampshade.
Optional diffuser made of translucent methacrylate.
Ø 250 cm / 98.4"
This fixture must be mounted or supported independently of a Junction Box (American version).
Light sources
Recommended light sources (not included): 24 x LED bulbLED bulb: 11 W
/ Input: 100, 120, 230 Vac.
C.E.E. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). According to destination.
Lamp holder: E26 (Max. height 155 mm / 6.1″)
Dimension plane
Overview
Texturized black metal structure with stainless steel structure hanging system of 1 or 3 supports and satin nickel ceiling plate.
Glass block lampshade.
Optional diffuser made of translucent methacrylate.
Ø 250 cm / 98.4"
Junction Box adaptor included Ø 11,7 cm / 4.6". This fixture must be mounted or supported independently of a Junction Box (American version).
Light sources
Recommended light sources (not included): 24 x LED bulbLED bulb: 11 W
/ Input: 100, 120, 230 Vac.
C.E.E. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). According to destination.
Lamp holder: E26 (Max. height 155 mm / 6.1″)
Available modifications
Other ring dimensions.
Other structure shapes.
Lower diffusers.
Compositions of two or more rings one on top of another.

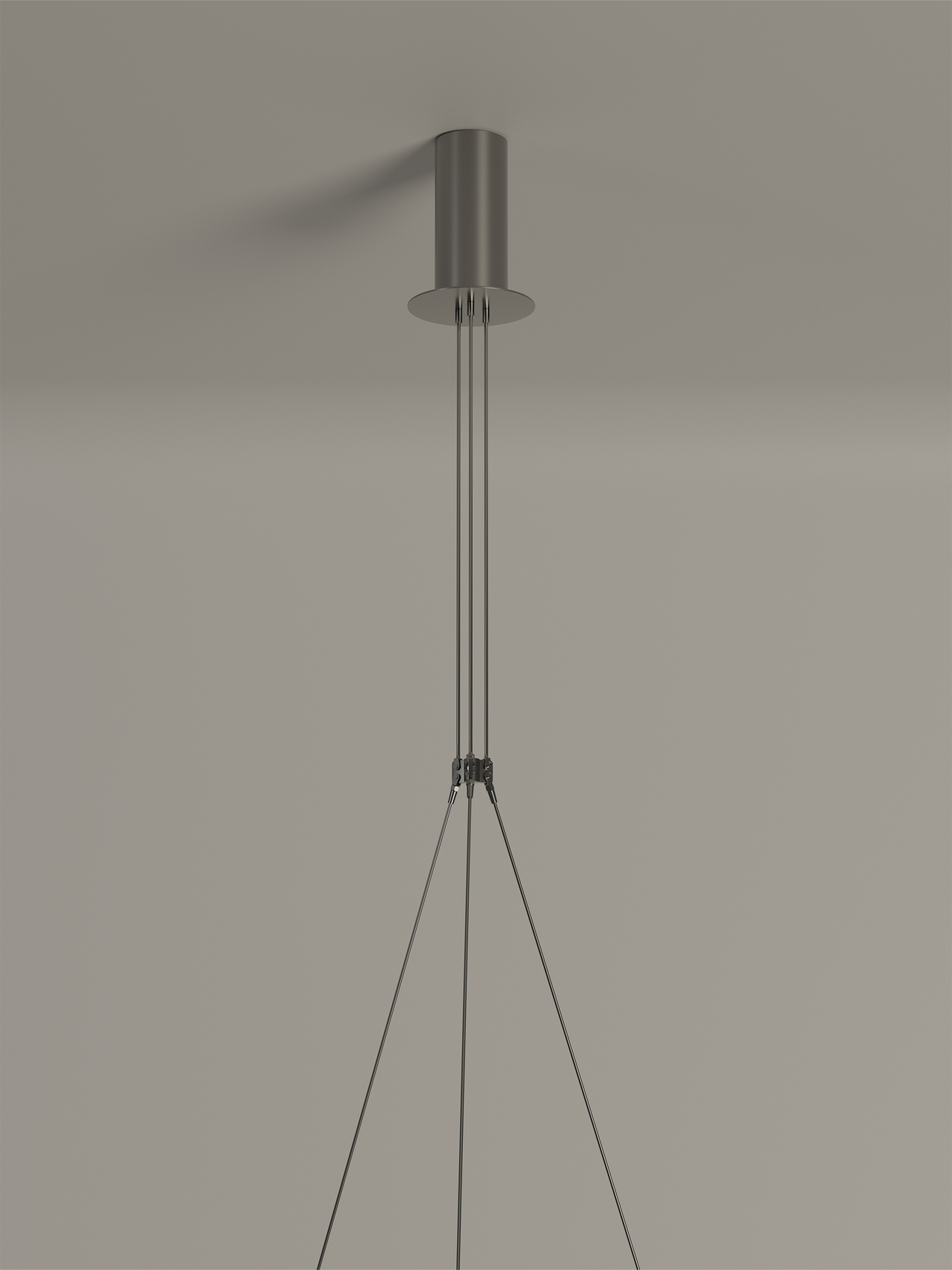

1 support hanging system
3 supports hanging system
1 support hanging system
3 supports hanging system
1 support hanging system
3 supports hanging system
